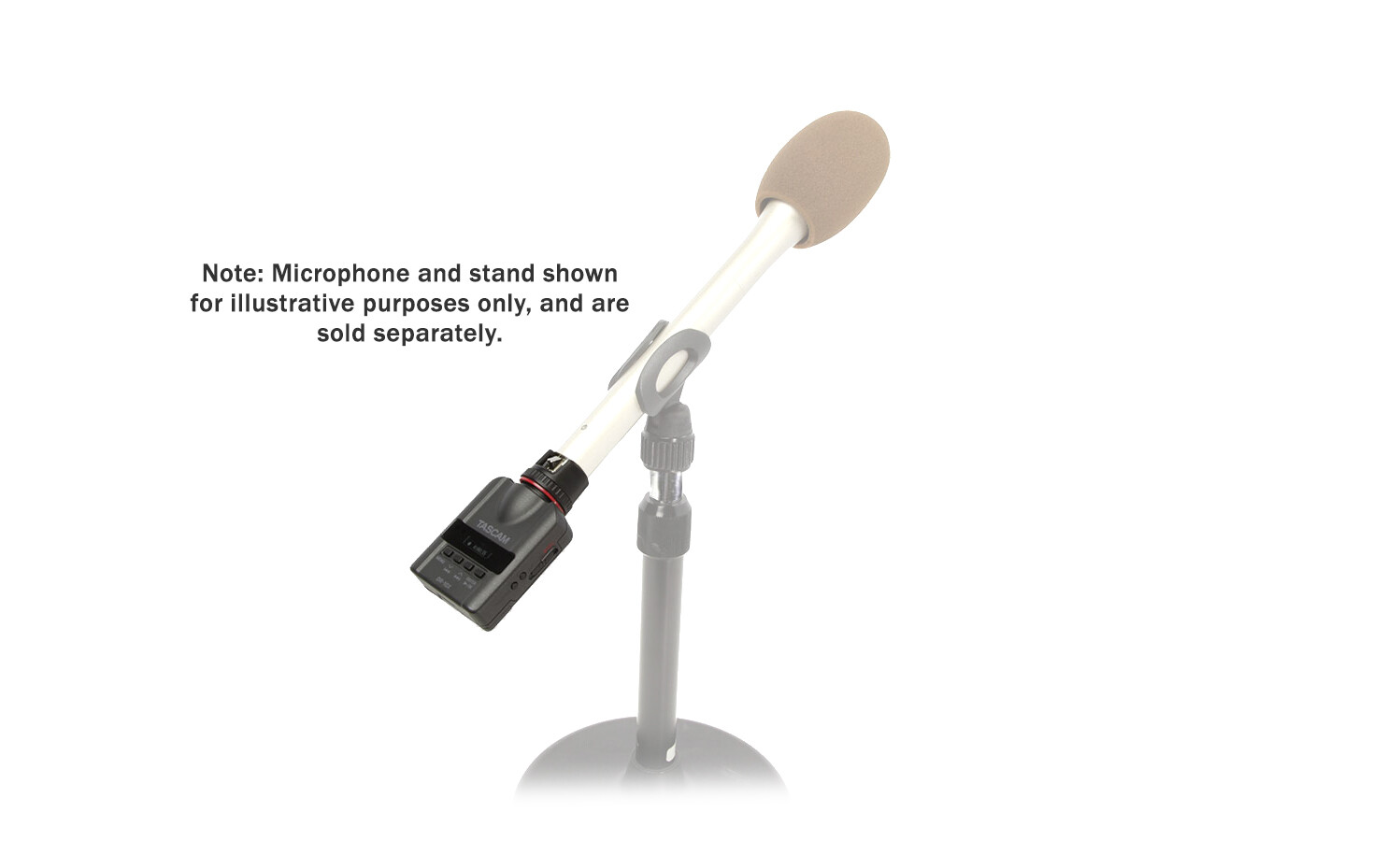

Tascam Dr-10x Plug-on Micro Linear Pcm Digital Audio Recorder

For the ultimate compact news gathering recording system, get the DR-10X from TASCAM. It features a captive XLR connector that easily attaches firmly to your microphone, capturing interviews at 48kHz / 24-bit Broadcast WAV resolution. You can then offload recordings through the microUSB connection or by removing the MicroSD card.

This innovative device has both manual and automatic gain settings along with a low-cut filter and limiter to prevent overloads. Its Dual Recording mode captures a copy of the audio at a lower level, so if there's distortion in the main signal, you have a safety backup ready. Recording can begin instantly by holding the record button while turning the unit on.

For simple-to-use ENG recording that stays out of the way, the DR-10X leads the field.

• USB cable, Owner's Manual (including warranty)

• XLR jack mounts to ENG or lavalier microphone
• 48kHz / 24-bit WAV (BWF) mono recording
• Uses MicroSD or MicroSDHC media, up to 32GB
• Mic pre gain lo/mid/hi control
• Instant record mode – power on while holding record button
• Limiter and low-cut filter
• Manual or automatic gain control
• Dual recording mode captures a copy of your audio at a lower level as a safety track
• Time Track Increment function writes a new track marker after a set time limit
• Easy-to-read OLED display
• IR transmit/receive to copy settings between units

• Note: specifications and further information can be found within the items located under the "Documentation" tab above.
• Recording media microSD card (64MB to 2GB),
• microSDHC card (4GB to 32GB)
• Media discharging Push-Push type (Guard cover mounted)
• Recording format
  • V1.00 WAV: 44.1k / 48kHz, 16 / 24-bit mono/poly WAV (BWF format)
  • V2.00 WAV: 44.1k / 48kHz, 16 / 24-bit mono/poly (BWF format)
  • MP3: 44.1k / 48kHz, 24-bit mono/poly
  • Recording: 128k / 192k bps
  • Playback: 32k to 320k bps
• Analog audio Inputs
  • Connector: XLR-3-31 × 1
  • Input Impedance: 10kΩ or more
  • MIC input gain: LOW / MID / HIGH
• PHONES
  • Connector: 1/8" (3.5mm) Stereo Mini jack (DUAL MONO) × 1
• USB
  • Connector: USB Micro-B type 4pin × 1
  • Maximum Output: USB2.0 HIGH SPEED mass storage class
• Power: 1 AAA batteries (Alkaline or NiMH), USB bus power
• Power consumption
  • Battery operation time: Alkaline batteries (EVOLTA): Approx. 10 hours
  • Battery (RTC) Lithium × 1(built in with soldering)
• Dimensions: 2.1" × 3.7" × 1.1" / 52 × 94.4 × 28mm
• Weight: 2.4oz. / 68.3g (including batteries), 1.99oz. / 56.3g (excluding batteries)
